Product Description

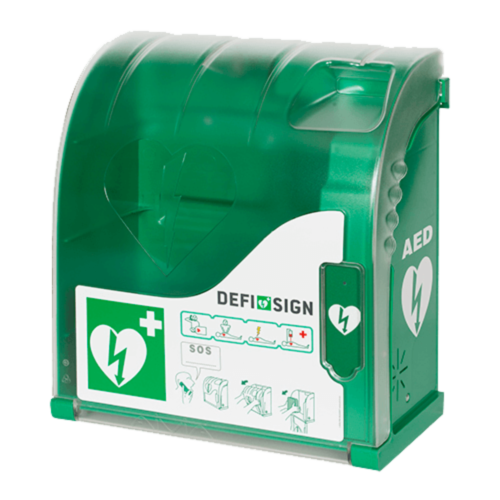

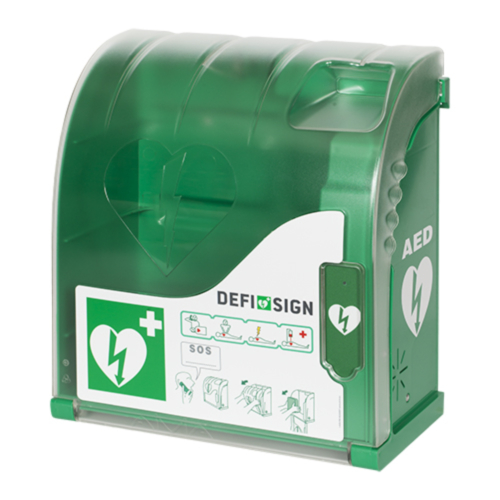

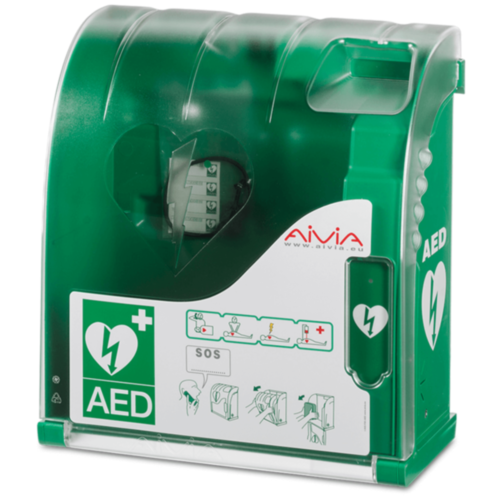

DefiSign / Aivia 100 AED Wall Cabinet
The DefiSign / AIVIA 100 may be installed indoors. Combining strength and lightness Aivia is composed of two distinct parts:
- The polycarbonate cover
- The ABS base
These materials are well known in the automobile industry, among others, giving excellent shock resistance properties. Polycarbonate is used in vehicle headlights and ABS for bumpers.
Markings
On the front face are shown the survival sequence and three clear pictograms with instructions for use. On the sides are AED (English) and DAE (Latin) separated from the logo for the defibrillator (heart broken by an electric spark).
Features:
- Day/night lighting of the AED compartment by leds with automatic luminosity detection.

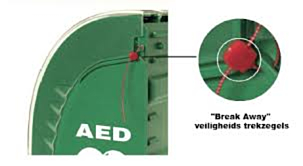

- Access to the AED is protected by plastic coated seals.
- Opening the cover automatically triggers a visual alarm (flashing red leds).
- The audible alarm, optional, is activated when the cover opens (95dB).
- Location Powered with 4 disposable batteries (4xLR20 delivered)

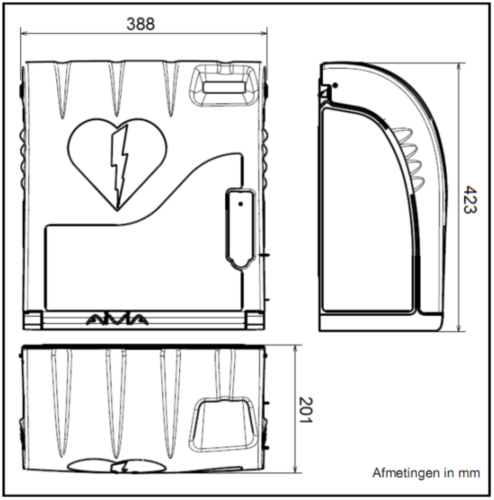

AIVIA 100 Dimensions
H = 423 mm, L = 388 mm, P = 201 mm, Weight = 3.5 kg
Warranty
AIVIA cabinets supplied after January 2012, have a two year factory warranty.
Specifications
Product name | DefiSign / Aivia 100 AED Wall Cabinet |
---|---|
SKU | DS-100 |
Manufacturer
|
Aivia |
Cabinet use | Indoor |
Warranty | 2 years |
Weight | 1 kgs |
User Manual
Click here to see the user manual
